If you have ever used a screw, you will be able to install MOSTAT approximately in half an hour or even quicker.
COMPATIBILITY CHECK
Purchasing from us is convenient unlike purchasing from the competitors
The room temperature sensor can be installed into the wall as well as in any place you wish.
MOSTAT's thermostat installation does not require any wire connection from the heating boiler to the room temperature transmitter, nor the boring of the wall and other awkward works. Compared with competitors, MOSTAT comes with WI-FI support, thus the communication between the boiler and the room temperature transmitter is performed without any additional "gateway device".
COMPATIBILITY CHECKIt is compatible with 90% individual heating boilers in Georgia
General Requiremets
Wireless Wi-Fi Internet
Individual Heating Boiler
How it works

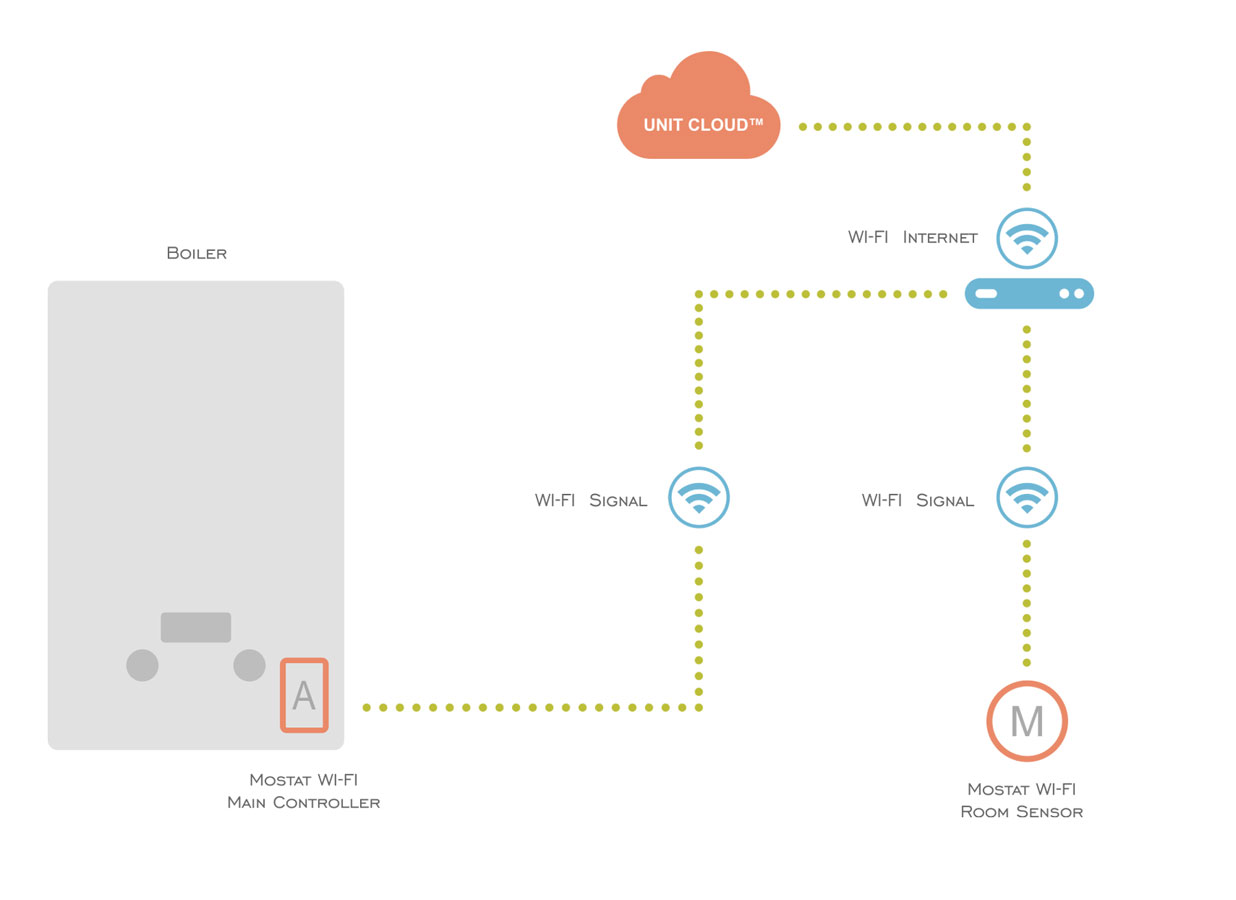

Installation Diagram
According to this scheme, MOSTAT control block is installed in your heating boiler (with A mark). While the controller is connected to your home internet’s wireless network and becomes a constant connection with our Unit Cloud ™ servers.
Also, the MOSTAT room sensor (with M mark) is connected to your home internet’s wireless network. This connection is established between heating boiler and room sensor.
All data received and sent from thermostat is encrypted with AES-256 and sent to the Unit Cloud ™ server. Data received from MOSTAT is stored and processed by our servers at 15 seconds intervals.
COMPATIBILITY CHECK BUY
Recommended location for the room sensor transmitter
In order not to interfere with the room temperature transmitter correctly calculating the temperature, keep in mind the following tips:
- The best location for the MOSTAT is the living room where the family members spend the most of the time.
- Install it 120 to 150 centimeters from the floor, as shown in the picture.
- Make sure to install it 2 to 3 meters away from the door and window.
- Avoid direct sun lights.
- Avoid heating radiators, as well as any object that radiates heat.
COMPATIBILITY CHECK BUY
SPECIFICATIONS
Design
- Multifunctional Backlight
- Finished wood (Acacia)
Size
- Room Sensor (83.5mm x 26.5mm)
- Main Controller (82mm x 53mm)
Connection
- Wireless (Wi-Fi 802.11b/g/n @ 2.4GHz, 5GHz 802.15.4 @ 2.4GH)
- Wifi connection between Room Sensor and Main Controller
- There is no need to install extra "gateway device"
Sensors
- Temperature sensor (-40°C to +120°C)
- Temperature resolution (+/- 0.01°C)
- Relative humidity sensor (0 to 100 %RH)
- Relative humidity resolution (+/- 0.04 %RH)
Power Source
- Room Sensor (2xAA batteries. Lasts 1 year)
- Main Controller (from boiler)
Compatibility
- Requirements - Wireless Wi-Fi internet connection
- Compatible with 90% of the individual heating systems in Georgia
- Compatibility check
Application
- Thermostat control from iOS device, Android device, Web (Safari, Chrome, Firefox)
- Interaction with the room sensor is performed only from the application
- Simultaneous control via multiple devices
Warranty
- Warranty 2 years
- Warranty terms
Installation
- Installation time, 15-20 minutes
- No wall boring required
- No extra wires required
- Can you change the lamp? So, you will be able to install the thermostat
In the box
- 1x Room Sensor
- 1x Main Controller
- 2x AA batteries
- 1x External antenna
- 1x External temperature sensor
- 1x Power cable A type
- 1x Power cable B type
- 2x Screws / Screws anchors
- Installation instruction
